Chapter 2: Gravitation

Problem 2.1

For a homogeneous sphere \(v_c \sim r\)

\[ v_c(r) = \sqrt{\frac{4\pi G \rho_0}{3}} r \]

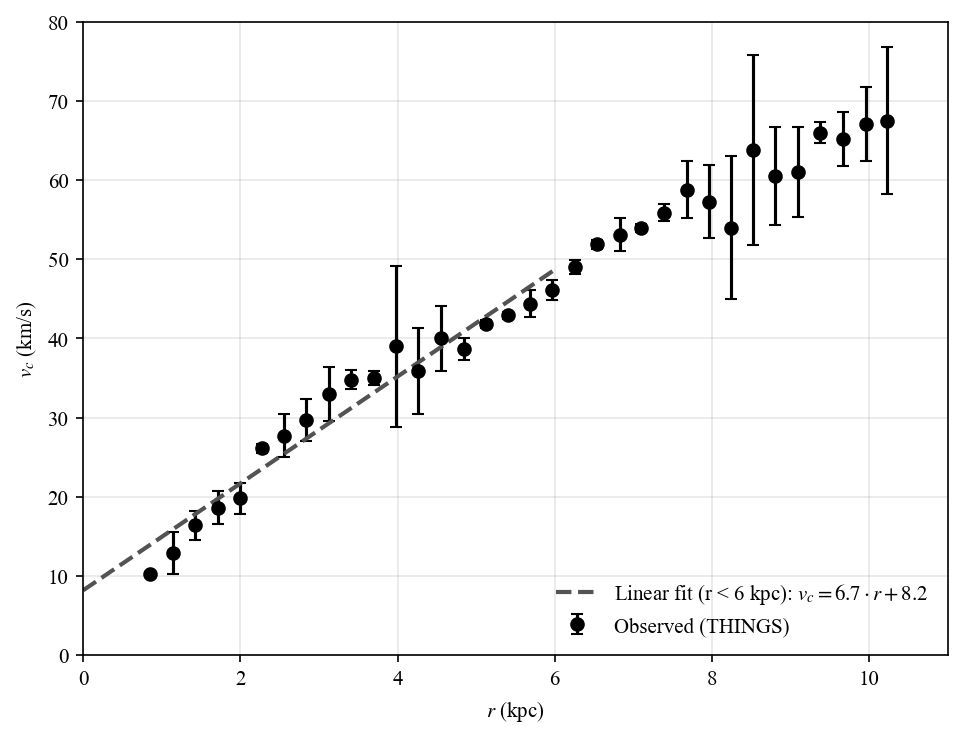

Figure 2.1: Data from the THINGS survey (de Blok et al., 2008)¹ shows that the circular velocity rises approximately linearly with radius for \(r < 6\) kpc. Linear fit shown in dashed line.

\[v_c \approx 6.75 \cdot r + 8.18 \text{ km/s}\]

with \(R^2 = 0.949\), from this we can estimate the central density of IC 2574 as

\[ \rho_0 = \frac{3}{4 \pi G} \left(\frac{v_c}{r}\right)^2 \approx 1.27 \times 10^7 M_\odot \text{ kpc}^{-3} \]

Script to generate figure:

from galactic_dynamics_bovy.chapter02.ic_2574 import plot_rotation_curve
plot_rotation_curve()

Problem 2.2

Numerical solution

The connection between virial radius \(r_{\mathrm{vir}}\), virial mass \(M_{\mathrm{vir}}\), and overdensity \(\Delta_v\) is

\[ \frac{3\rho_0}{c^3}f(c) = \Delta_v \rho_{\mathrm{crit}} \quad f(c) = \ln(1+c) - \frac{c}{1+c} \quad r_{\mathrm{vir}} = c a, \]

or equivalently

\[ \frac{3f(c)}{c^3} = y \quad y = \frac{\Delta_v \rho_{\mathrm{crit}}}{\rho_0}. \]

The expression \(r_{\mathrm{vir}} = a c(y)\) then gives the virial radius as a function of overdensity \(\Delta_v\). However, there is no closed-form solution for \(c(y)\), so we must solve numerically.

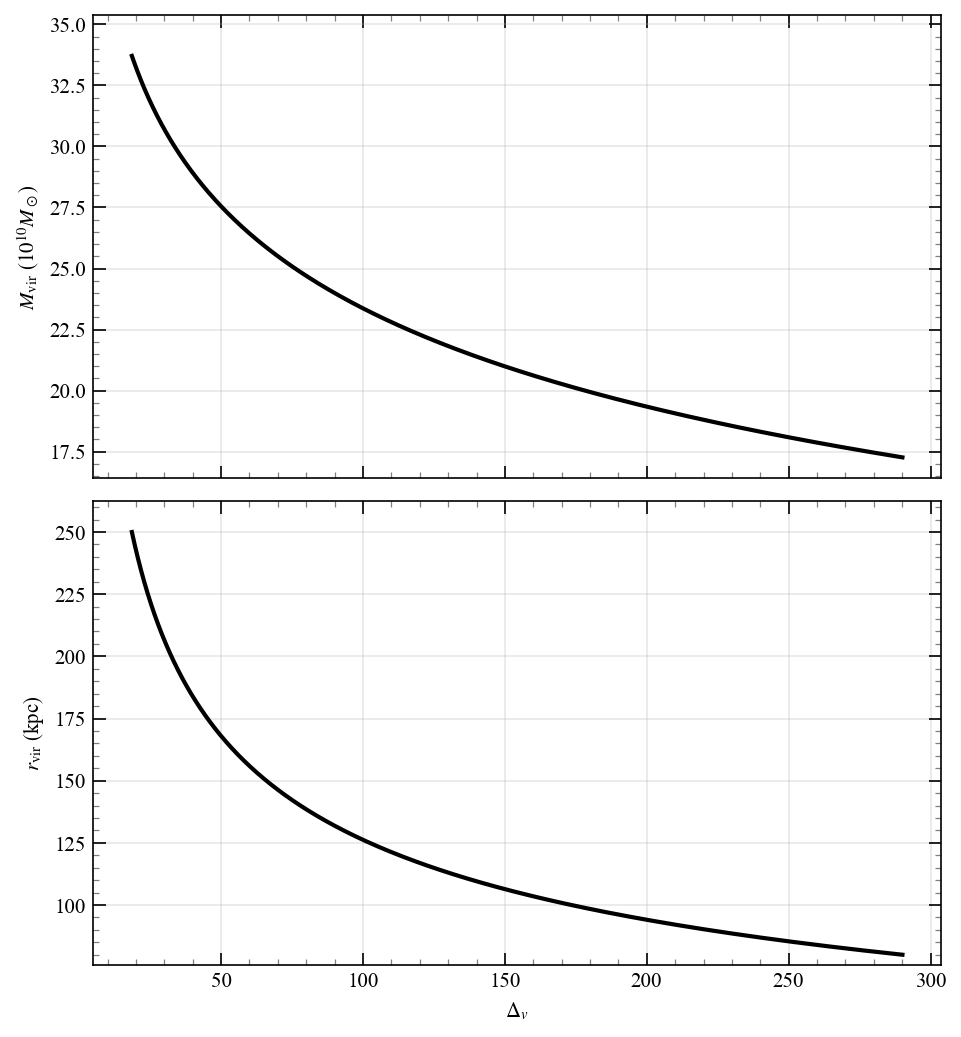

Figure 2.2: Virial mass (top) and virial radius (bottom) as a function of overdensity \(\Delta_v\) for an NFW halo with \(\rho_0 = 3.5 \times 10^6\,M_\odot/\mathrm{kpc}^3\) and scale radius \(a = 16\) kpc. At \(\Delta_v = 200\), this halo has \(r_{\mathrm{vir}} \approx 95\) kpc and \(M_{\mathrm{vir}} \approx 2 \times 10^{11}\,M_\odot\).

Script to generate figure:

from galactic_dynamics_bovy.chapter02.rvir_mvir import plot_rvir_mvir_delta
plot_rvir_mvir_delta()

That being said, there are reasonable approximations for \(c(y)\) at high and low \(y\):

Small overdensity

In this regime

\[ \begin{align} f(c) &= \ln(1+c) - \frac{c}{1+c} \\ &= \left(c - \frac{c^2}{2} + \frac{c^3}{3} - \ldots\right) - \left(c - c^2 + c^3 - \ldots\right) \\ &= \frac{c^2}{2} - \frac{2 c^3}{3} + \mathcal{O}(c^4) \end{align} \]

such that

\[ \frac{2f(c)}{c^3} = \frac{3}{2c} - 2 + \mathcal{O}(c). \]

To leading order

\[ c \approx \frac{3}{2y}, \]

or equivalently

\[ r_{\mathrm{vir}} \approx \frac{3a}{2y} = \frac{3a \rho_0}{2 \Delta_v \rho_{\mathrm{crit}}} \sim \Delta_v^{-1} \]

Large overdensity

In this regime

\[ \begin{align} f(c) &= \ln(1+c) - \frac{c}{1+c} \\ &= \ln c - 1 + \mathcal{O}(1/c) \end{align} \]

therefore

\[ c^3 \sim \frac{2\ln c}{y} \implies c \sim \left(\frac{2 \ln c}{y}\right)^{1/3} \]

Up to a logarithmic correction, we have

\[ r_{\mathrm{vir}} \sim c \sim y^{-1/3} \sim \Delta_v^{-1/3} \]

In summary, we have

\[ r_{\mathrm{vir}} \sim \begin{cases}\Delta_v^{-1}, & \Delta_v \ll 1 \\ \Delta_v^{-1/3}, & \Delta_v \gg 1\end{cases} \]

Intuition behind the scaling

If \(\rho(r) \sim r^{-\gamma}\) then \(M(<r) \sim r^{3-\gamma}\), and \(\overline{\rho}(<r) \sim r^{-\gamma}\). Setting \(\overline{\rho}(<r) = \Delta_v \rho_{\mathrm{crit}}\) gives the scaling of \(r_{\mathrm{vir}}\) with \(\Delta_v\).

\[ r_{\mathrm{vir}} \sim \Delta_v^{-1/\gamma} \]

The NFW profile has \(\gamma \approx 1\) at small \(r\) and \(\gamma \approx 3\) at large \(r\), giving the scalings derived above. The reason for the scaling is then the two-power nature of the NFW profile.

Milky Way NFW Parameters

Recent estimates of the Milky Way's virial mass span a wide range. Using Gaia DR3 data, (Wang et al., 2023)² found \(M_{\mathrm{vir}} = (6.5 \pm 0.3) \times 10^{11}\,M_\odot\) with concentration \(c \approx 14.5\) for an NFW model. Earlier work by (Eilers et al., 2019)³ estimated \(M_{\mathrm{vir}} = (7.25 \pm 0.25) \times 10^{11}\,M_\odot\). Studies using globular clusters (Posti & Helmi, 2019)⁴ suggest a higher mass of \(M_{\mathrm{vir}} = (1.3 \pm 0.3) \times 10^{12}\,M_\odot\).

Problem 2.3

For a logarithmic potential

\[ M(<r) = \frac{r^2}{G} \frac{d\Phi}{dr} = \frac{r v_{c,0}^2}{G}. \]

The average density within \(r\) is then

\[ \rho(<r) = \frac{3 v_{c,0}^2}{4 \pi G r^2}. \]

Setting this equal to \(\Delta_v \rho_{\mathrm{crit}}\) and solving for \(r\) gives

\[ r_v^2 = \frac{3 v_{c,0}^2}{4 \pi G \Delta_v \rho_{\mathrm{crit}}} = \frac{2}{\Delta_v} \left(\frac{v_{c,0}}{H_0}\right)^2. \]

In the logarithmic potential \(v_c(r) = v_{c,0}\). Taking \(\Delta_v = 200\), we then have

\[ v_{c,0} = v_{200} = 10 H_0 r_{200}. \]

Problem 2.4

\(r_{\mathrm{vir}}\) vs \(M_{\mathrm{vir}}\) Scaling

The relation between virial mass and virial radius is \(M_{\mathrm{vir}} = 4\pi \Delta_v \rho_{\mathrm{crit}} r_{\mathrm{vir}}^3/3\), which is independent of the density profile. In particular, it does not depend on any potential scaling relation between virial mass and concentration.

Problem 2.5

Mass profile

For a density profile of the form

\[ \rho(r) = \rho_0 \frac{1}{(r/a)^2 (1 + r/a)^{2}}, \]

the mass profile is

\[ \begin{align} M(<r) &= 4 \pi \int_0^r dr'\, r'^2 \rho(r') \\ &= 4 \pi \rho_0 a^3 \int_0^{r/a} dx\, \frac{1}{(1+x)^2} \\ &= 4 \pi \rho_0 a^2 \frac{r}{1+r/a} \tag{2.5.1} \end{align} \]

and the potential (using $\Phi(r) = $)

\[ \begin{align} \Phi(r) &= -\frac{GM(<r)}{r} - 4\pi G \int_r^\infty dr'\, r' \rho(r') \\ &= -4\pi G \rho_0 a^2 \ln\left(1 + \frac{a}{r}\right) \end{align} \]

Circular velocity is then

\[ v_c^2 = r \frac{d\Phi}{dr} = \frac{4\pi G \rho_0 a^2}{1 + r/a} \tag{2.5.2} \]

Circular velocity

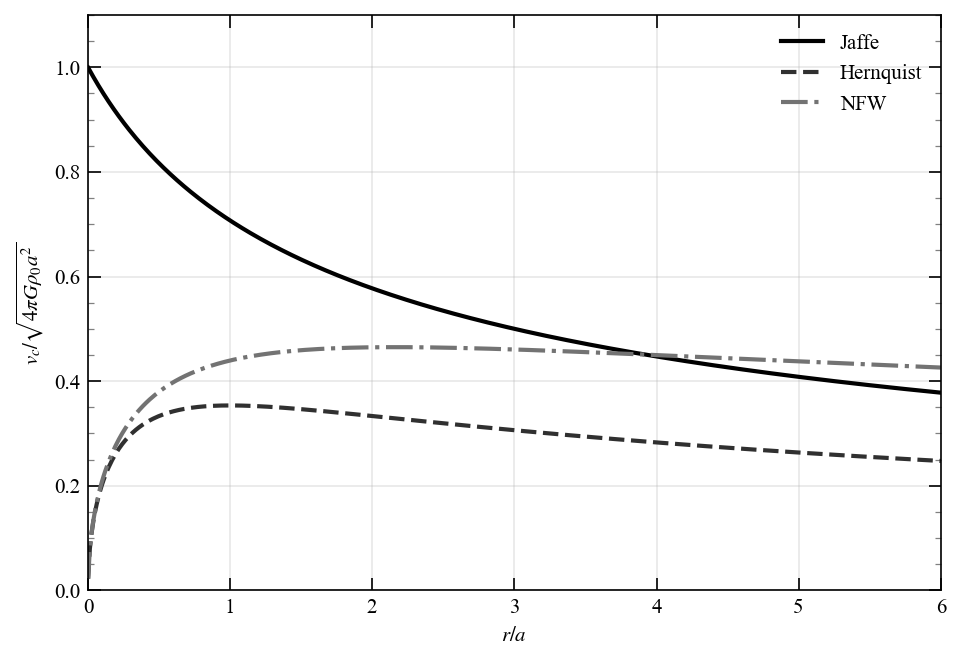

Figure 2.5: Normalized circular velocity as a function of \(r/a\) for Jaffe, Hernquist, and NFW profiles. The Jaffe profile has a monotonically decreasing rotation curve, while Hernquist and NFW rise at small radii before declining.

Script to generate figure:

from galactic_dynamics_bovy.chapter02.vcirc_profiles import plot_vcirc_profiles
plot_vcirc_profiles()

Hernquist vs. Jaffe

The total mass of the Jaffe profile is

\[ \lim_{r \to \infty} M(<r) \stackrel{(2.5.1)}{=} 4 \pi \rho_0 a^3 \]

And the gravitational potential for a Hernquist profile is

\[ \Phi_{\mathrm{Hernquist}}(r) = -\frac{4 \pi G \rho_0 a^2}{1 + r/a}. \tag{2.5.3} \]

Comparing (2.5.3) and (2.5.2) we see that the potential of a Hernquist profile with mass \(M = 4\pi \rho_{0,\mathrm{Hernquist}} a_{\mathrm{Hernquist}}^3\) matches the negative of the circular velocity squared profile of the Jaffe profile with mass \(M = 4\pi \rho_{0,\mathrm{Jaffe}} a_{\mathrm{Jaffe}}^3\).

Problem 2.6

Total mass

There are various ways to approach this problem.

First method

From Poisson's equation

\[ \begin{align} M_{\mathrm{tot}} &= \int d^3r \, \rho(r) = \frac{1}{4\pi G}\int d^2\mathbf{S} \cdot \nabla \Phi \\ &= \frac{1}{G} \lim_{r \to \infty} r^2 \frac{d\Phi}{dr} = 4\pi \rho a^2 \lim_{r \to \infty} r^2\frac{a/r^2}{1 + a / r} \\ &= 4\pi \rho_0 a^3 \end{align} \]

Second method

Since \(\Phi(r) \to 0\) at infinitu, we can write the monopole term of the potential as

\[ \Phi(r) \sim -G\frac{M_{\mathrm{tot}}}{r} = -4\pi G \rho_0 a^2 \frac{a}{r} \]

from which we again find \(M_{\mathrm{tot}} = 4\pi \rho_0 a^3\).

Power-law behavior

In spherical coordinates

\[ \rho(r) = \frac{1}{4\pi G}\nabla^2 \Phi = \frac{1}{4\pi G r^2} \frac{d}{dr} \left(r^2 \frac{d\Phi}{dr}\right). \]

If \(\phi(r) \sim A r^\alpha\) for large \(r\), then

\[ \rho(r) \sim \frac{A \alpha (\alpha + 1)}{4\pi G} r^{\alpha - 2}, \]

so the density behaves as \(\rho(r) \sim r^{\alpha - 2}\). What we need to do is to find the power-law behavior of the potential, which is just

\[ \Phi(r) \sim -4\pi G \rho_0 a^2 \frac{a}{r} \quad \Rightarrow \quad \alpha = -1. \]

therefore \(\rho(r) \sim r^{-3}\) at large \(r\).

Problem 2.7

For an exponential disk the enclosed mass profile is

\[ M(<R) = 2\pi \int_0^R dR' \, R' \Sigma(R') = M \left[1 - \left(1 + \frac{R}{R_d}\right) e^{-R/R_d}\right]. \]

Define the "spherical exponential disk" as the spherical distribution function with the same enclosed mass profile

\[ M(<r) = M \left[1 - \left(1 + \frac{r}{R_d}\right) e^{-r/R_d}\right]. \]

This corresponds to a density profile

\[ \rho(r) = \frac{1}{4\pi r^2} \frac{dM(<r)}{dr} = \frac{M}{4\pi R_d^3} e^{-r/R_d}. \]

And the potential is

\[ \begin{align} \Phi(r) &= -\frac{GM(<r)}{r} - 4\pi G \int_r^\infty dr' \, r' \rho(r') \\ &= -\frac{GM}{r} \left[1 - \left(1 + \frac{r}{R_d}\right) e^{-r/R_d}\right] - G \frac{M}{R_d} e^{-r/R_d} \\ &= -\frac{GM}{r} \left[1 - e^{-r/R_d}\right] \end{align} \]

The circular velocity is then

\[ v_c^2(r) = r \frac{d\Phi}{dr} = \frac{GM}{r} \left[1 - \left(1 + \frac{r}{R_d}\right) e^{-r/R_d}\right]. \]

For comparison, the circular velocity of a true exponential disk (Freeman 1970) is

\[ v_c^2(R) = 4\pi G \Sigma_0 R_d \, y^2 \left[I_0(y)K_0(y) - I_1(y)K_1(y)\right], \quad y = \frac{R}{2R_d} \]

where \(I_n\) and \(K_n\) are modified Bessel functions.

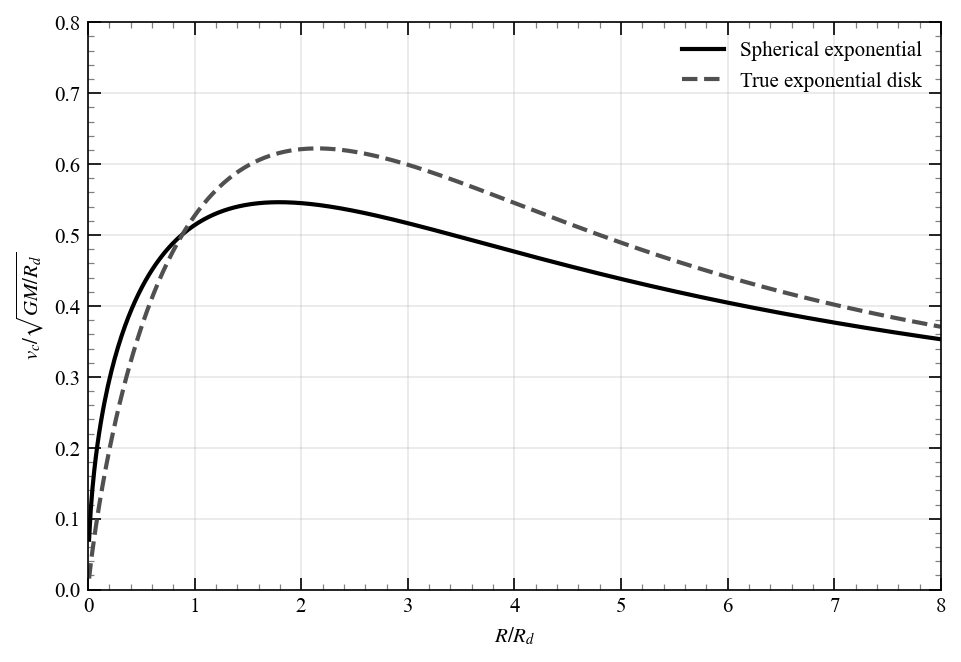

Figure 2.7: Normalized circular velocity as a function of \(R/R_d\) for the spherical exponential disk (solid) and the true exponential disk (dashed). The spherical approximation peaks at smaller radius than the true disk.

Script to generate figure:

from galactic_dynamics_bovy.chapter02.spherical_exponential import plot_exponential_vcirc
plot_exponential_vcirc()

Problem 2.8

Potential

Consider a 1D mass distribution \(\rho(x) = A\delta(x)\),

\[ m = \int_{-\infty}^\infty dx \, \rho(x) = A. \]

Constant \(A\) is therefore the total mass of the distribution. The 1D Poisson equation is

\[ \frac{d^2 \Phi}{dx^2} = 4\pi G m \delta(x). \]

Away from \(x=0\) the this equation is homogenous, so the potential is linear in \(x\).

\[ \Phi(x) = \begin{cases}a x + b, & x < 0 \\ -ax + b, & x > 0\end{cases} \tag{2.8.1} \]

where symmetry and continuity are used to set the coefficients. Now, let's integrate the Poisson equation across \(x=0\):

\[ \begin{align} \int_{-\epsilon}^{\epsilon} dx \, \frac{d^2 \Phi}{dx^2} &= 4\pi G m \int_{-\epsilon}^{\epsilon} dx \, \delta(x) \\ &= 2a = 4\pi G m \end{align} \]

The potential is therefore

\[ \Phi(x) = 2\pi G m |x|. \]

Where I dropped the constant \(b\) since it is physically irrelevant. The force is then

\[ F(x) = -\frac{d\Phi}{dx} = -2\pi G m \, \mathrm{sgn}(x). \]

N-body simulation

For an \(N\)-body simulation with \(N\) particles of equal mass \(m\), the force on particle \(i\) is

\[ F_i = 2\pi G m (N_i^+ - N_i^-), \]

where \(N_i^+\) and \(N_i^-\) are the number of particles to the right and left of particle \(i\). This can be computed in \(\mathcal{O}(N \log N)\) time by sorting the particles.

flowchart TD
    A["Input: positions x₁, x₂, ..., xₙ"] --> B["Sort positions — O(N log N)"]
    B --> C["For particle at sorted position k:<br/>N_left = k, N_right = N − 1 − k"]
    C --> D["Compute force:<br/>F_k = 2πGm(N_right − N_left)"]
    D --> E["Map forces back to original order"]
    E --> F["Output: forces F₁, F₂, ..., Fₙ"]

For a uniform distribution on \([-1/2, 1/2]\) with total mass \(M\), the theoretical force is

\[ F(x) = -4\pi G M x. \]

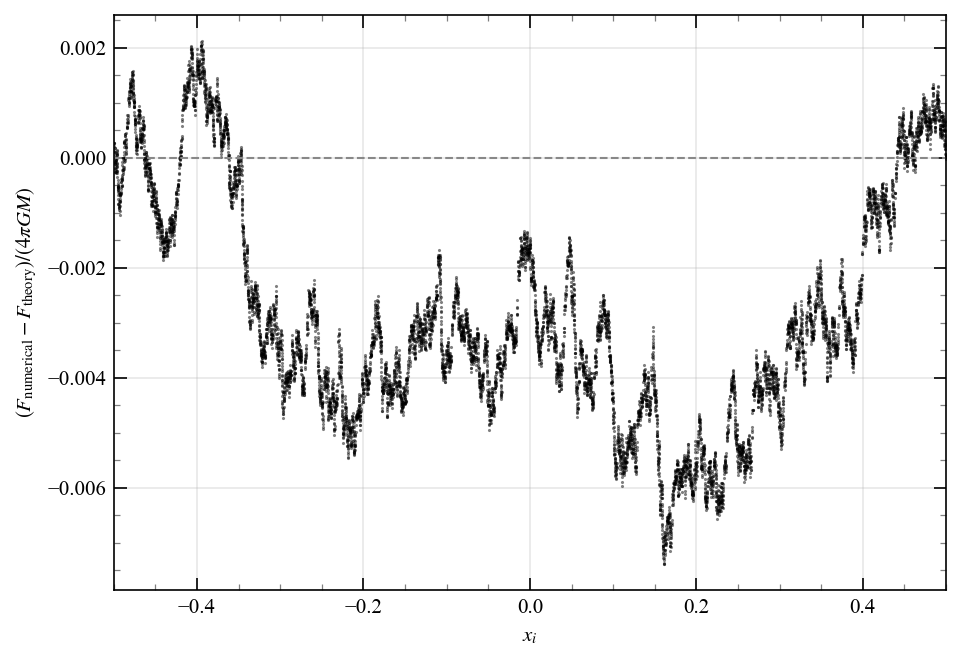

Figure 2.8: Comparison of numerical vs theoretical gravitational force for \(N = 10000\) particles uniformly distributed on \([-1/2, 1/2]\). The error \((F_{\mathrm{numerical}} - F_{\mathrm{theory}}) / (4 \pi G M)\) stays close to zero across the distribution.

Script to generate figure:

from galactic_dynamics_bovy.chapter02.nbody_1d import plot_force_comparison
plot_force_comparison()

Energy

To calculate the forces we already sorted the particles. The potential energy of particle \(i\) is:

\[ \Phi_i = 2\pi G m \sum_{j \neq i} |x_i - x_j| \]

For a particle at sorted position \(k\), this splits into:

\[ \Phi_k = 2\pi G m \left[ \sum_{j<k} (x_k - x_j) + \sum_{j>k} (x_j - x_k) \right] \]

This can be rewritten as:

\[ \Phi_k = 2\pi G m \left[ k \cdot x_k - S_{\text{left}}(k) + S_{\text{right}}(k) - (N-1-k) \cdot x_k \right] \]

where: - \(S_{\text{left}}(k) = \sum_{j<k} x_j\) (sum of positions to the left) - \(S_{\text{right}}(k) = \sum_{j>k} x_j\) (sum of positions to the right)

The trick: compute a prefix sum array once in \(\mathcal{O}(N)\):

prefix[k] = x[0] + x[1] + ... + x[k-1]

Then:

• \(S_{\text{left}}(k) = \texttt{prefix}[k]\)
• \(S_{\text{right}}(k) = \texttt{totalsum} - \texttt{prefix}[k] - x_k\)

Each particle's potential energy is then computed in \(\mathcal{O}(1)\), giving \(\mathcal{O}(N)\) total.

flowchart TD
    A["Input: sorted positions x₁ ≤ x₂ ≤ ... ≤ xₙ"] --> B["Compute prefix sum array — O(N)<br/>prefix[k] = x₀ + x₁ + ... + x_{k-1}"]
    B --> C["Compute total sum<br/>S_total = x₀ + x₁ + ... + x_{N-1}"]
    C --> D["For each particle k:"]
    D --> E["S_left = prefix[k]<br/>S_right = S_total − prefix[k] − x_k"]
    E --> F["Φ_k = 2πGm[k·x_k − S_left + S_right − (N−1−k)·x_k]"]
    F --> G["Output: potential energies Φ₁, Φ₂, ..., Φₙ"]

Problem 2.9

Mass, potential, and circular velocity

Call the mass-to-light ratio \(\Upsilon = M/L\), the density is

\[ \rho(x) = \frac{\Upsilon I_0}{2a} \frac{1}{(1 + r^2 / a^2)^{3/2}}. \]

The mass profile is

\[ \begin{align} M(<r) &= 4\pi \int_0^r dr' \,r'^2 \rho(r') \\ &= 2\pi \Upsilon I_0 a^2 \int_0^{r/a} dx \, \frac{x^2}{(1 + x^2)^{3/2}} \\ &= 2\pi \Upsilon I_0 a^2 \left[\mathrm{arcsinh}(r/a) - \frac{r/a}{(1 + r^2/a^2)^{1/2}}\right] \tag{2.9.1} \end{align} \]

The gravitational potential is

\[ \begin{align} \Phi(r) &= -\frac{GM(<r)}{r} - 4\pi G \int_r^\infty dr' \, r' \rho(r') \\ &= -\frac{2\pi G \Upsilon I_0 a^2}{r} \left[\mathrm{arcsinh}(r/a) - \frac{r/a}{(1 + r^2/a^2)^{1/2}}\right] -2\pi G \Upsilon I_0 a^2 \left[\frac{1}{(1 + r^2/a^2)^{1/2}}\right] \\ &= - \frac{2\pi G \Upsilon I_0 a^2}{r} \mathrm{arcsinh}(r/a) \tag{2.9.2} \end{align} \]

and the circular velocity is

\[ v_c^2(r) = r \frac{d\Phi}{dr} = \frac{2\pi G \Upsilon I_0 a^2}{r} \left[\mathrm{arcsinh}(r/a) - \frac{r/a}{(1 + r^2/a^2)^{1/2}}\right]. \tag{2.9.3} \]

Limiting behaviors

For \(x \gg 1\) we have

\[ \begin{align} \mathrm{arcsinh}(x) = \ln (2x) + \frac{1}{4x^2} + \mathcal{O}(x^{-4}) \\ \frac{x}{(1 + x^2)^{1/2}} = 1 - \frac{x^2}{2} + \mathcal{O}(x^{-4}) \end{align} \]

so that

\[ \begin{align} M(<r) &= 2\pi \Upsilon I_0 a^2 \left[\ln\frac{2r}{a} - 1 + \frac{3a}{4r^2} + \mathcal{O}\left(\frac{a^4}{r^4}\right)\right] \\ \Phi(r) &= -\frac{2\pi G \Upsilon I_0 a^2}{r} \left[\ln\frac{2r}{a} + \frac{a^2}{4r^2} + \mathcal{O}\left(\frac{a^4}{r^4}\right)\right] \\ v_c^2(r) &= \frac{2\pi G \Upsilon I_0 a^2}{r}\left[\ln\frac{2r}{a} - 1 + \frac{3a^2}{4r^2} + \mathcal{O}\left(\frac{a^4}{r^4}\right)\right] \end{align} \]

Mass logarithmically diverges, potential falls off as \(1/r\) with a logarithmic correction, and circular velocity falls off as \(\sqrt{\ln r/r}\).

Problem 2.10

For the profile

\[ \rho(r) = \frac{\rho_0}{(r/a)^\gamma (1 + r/a)^{4 - \gamma}}, \]

we have

Mass

\[ \begin{align} M(<r) &= 4\pi \int_0^r dr' \,r'^2 \rho(r') \\ &= 4\pi \rho_0 a^3 \int_0^{r/a} dx \, \frac{x^{2 - \gamma}}{(1 + x)^{4 - \gamma}} \\ &= \frac{4\pi \rho_0 a^3}{3 - \gamma}\left(\frac{r}{r + a}\right)^{3 - \gamma} \\ &= M_\gamma\left(\frac{r}{r + a}\right)^{3 - \gamma} \quad 0\leq \gamma < 3\tag{2.10.1} \end{align} \]

Total mass is

\[ M_\gamma = \lim_{r \to \infty} M(<r) = \frac{4\pi \rho_0 a^3}{3 - \gamma}. \]

Potential

For \(\gamma \neq 2\), the contribution to the potential from the outer-shell integral is (\(x = r/a\))

\[ \begin{align} I_{\mathrm{out}}(r) &= \int_x^\infty dx' \, \frac{1}{x'^{\gamma - 1} (1 + x')^{4 - \gamma}} \\ &= \int_u^1 du'\, (u'^{1-\gamma} -u'^{2-\gamma}) \quad u = \frac{x}{1 + x} \\ &= \left[\frac{u'^{2 - \gamma}}{2 - \gamma} - \frac{u'^{3 - \gamma}}{3 - \gamma} \right]_u^1 \\ &= \frac{1}{(2 - \gamma)(3 - \gamma)} - \left[\frac{u^{2 - \gamma}}{2 - \gamma} - \frac{u^{3 - \gamma}}{3 - \gamma}\right] \end{align} \]

The potential is then

\[ \begin{align} \Phi(r) &= -\frac{GM(<r)}{r} - 4\pi G \rho_0 a^2 I_{\mathrm{out}}(r) \\ &= -\frac{4\pi G \rho_0 a^2}{(2 - \gamma)(3 - \gamma)} \left[1 - \left(\frac{r}{r + a} \right)^{2 - \gamma}\right] \\ &= -\frac{G M_\gamma}{(2 - \gamma) a} \left[1 - \left(\frac{r}{r + a} \right)^{2 - \gamma}\right] \quad \gamma \neq 2 \tag{2.10.2} \end{align} \]

For \(\gamma = 2\), the outer-shell integral is

\[ \begin{align} I_{\mathrm{out}}(r) &= \int_x^\infty dx' \, \frac{1}{x'^{0} (1 + x')^{2}} \\ &= -\ln u - (1 - u) \end{align} \]

And the potential becomes

\[ \Phi(r) = -\frac{G M_2}{a} \ln\left(\frac{r + a}{r}\right) \quad \gamma = 2. \tag{2.10.3} \]
