Problems 11-13

Problem 2.11

Consider a potential of the form

\[ \Phi(r) = -\frac{GM_p}{a}\frac{1}{(1 + r^p/a^p)^{1/p}} \]

Density

The density can be directly calculated from Poisson's equation.

\[ \begin{align} \rho(r) &= \frac{1}{4\pi G}\nabla^2\Phi(r) \\ &= \frac{1}{4\pi G}\frac{1}{r^2}\frac{d}{dr}\left(r^2\frac{d\Phi}{dr}\right) \\ &= \frac{M_p}{4\pi}\frac{1}{r^2}\frac{d}{dr}\left(\frac{r^2 (r/a)^{p-1}}{a^2(1 + (r/a)^p)^{1 + 1/p}}\right) \\ &= \frac{M_p(p+1)}{4\pi a^3}\frac{(r/a)^{p-2}}{(1 + (r/a)^p)^{2 + 1/p}} \\ \end{align} \]

Mass

The mass can also be directly calculated from the potential

\[ \begin{align} M(r) &= \frac{1}{G}r^2\frac{d\Phi}{dr} \\ &= \frac{M_p r^2 (r/a)^{p-1}}{a^2(1 + (r/a)^p)^{1 + 1/p}} \\ &= M_p\frac{(r/a)^{p+1}}{(1 + (r/a)^p)^{1 + 1/p}} \\ \end{align} \]

Total mass is \(M_p\) as \(r\to\infty\), so the \(r_{1/2}\) can be found by solving

\[ M(r_{1/2}) = \frac{M_p}{2} = M_p\frac{(r_{1/2}/a)^{p+1}}{(1 + (r_{1/2}/a)^p)^{1 + 1/p}} \]

Define \(x = (r_{1/2}/a)^p\), so that the equation becomes

\[ \frac{1}{2} = \frac{x^{(p+1)/p}}{(1 + x)^{1 + 1/p}} = \left(\frac{x}{1 + x}\right)^{(p+1)/p} \]

Threfore

\[ r_{1/2} = a\left(2^{p/(p+1)} - 1\right)^{-1/p} \]

Problem 2.12

Instead of calculating the projected mass using \(\Sigma(R) = 2\int_0^\infty dz\, \rho(\sqrt{R^2 + z^2})\) I will use the Abel form

\[ \Sigma(R) = 2\int_R^\infty dr\,\frac{r\rho(r)}{\sqrt{r^2 - R^2}}, \]

with

\[ \rho(r) = \frac{(3 - \gamma)M}{4\pi a^3} \frac{1}{y^\gamma(1 + y)^{4 - \gamma}}, \]

Defining \(x = R/a\) and \(y = r/a\), this becomes

\[ \Sigma(R) = \frac{M}{a^2}s(x), \quad s(x) = \frac{(3 - \gamma)}{2\pi}\int_x^\infty dy\,\frac{y^{1 - \gamma}}{(1 + y)^{4 - \gamma}\sqrt{y^2 - x^2}}. \tag{2.12.1} \]

and the projected mass

\[ M_{\mathrm{proj}}(<R) = M m_p(x), \quad m_p(x) = 2\pi\int_0^x dx'\, x' s(x'). \tag{2.12.2} \]

The effective radius requires to find \(x_e\) such that \(m_p(x_e) = 1/2\). Also, the half-mass radius in 3D is given by \(y_{1/2} = (2^{1/(3 - \gamma)} - 1)^{-1}\).

Before I go into the details of the numerical implementation, I will plot the effective radius as a function of \(\gamma\).

from galactic_dynamics_bovy.chapter02.effective_radius_gamma import plot_effective_radius_gamma
plot_effective_radius_gamma()

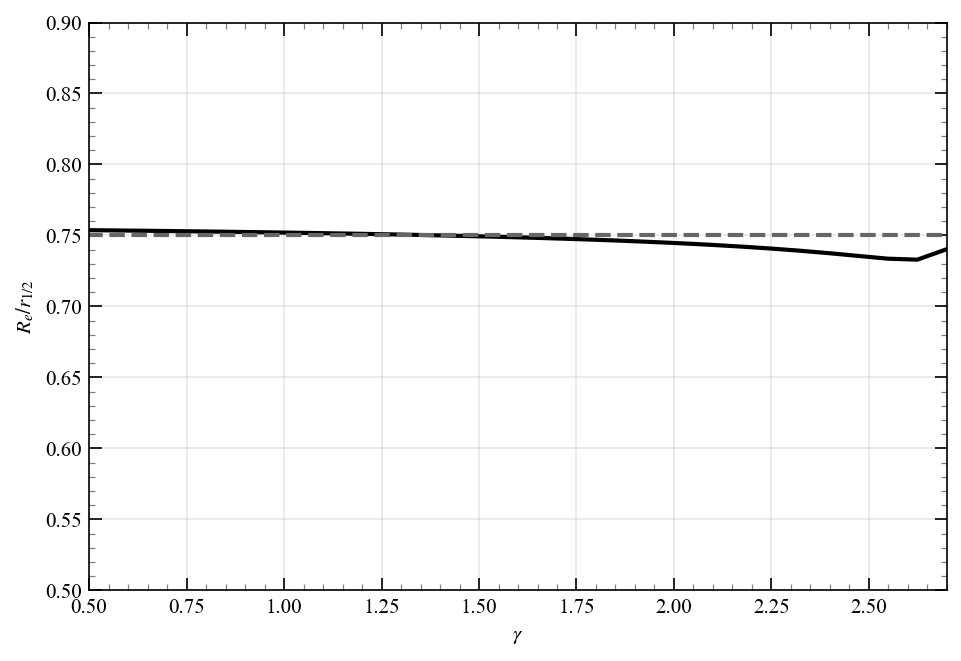

Figure 2.12: Effective radius as a function of \(\gamma\). For large \(\gamma\) the mass becomes more centrally concentrated, which makes numerically convergence a bit more challenging. Line \(R_e/r_{1/2} = 3/4\) added for reference.

Now, the numerical considerations

1. I pre-compute \(s(x)\) on a grid in \(x\) for a given \(\gamma\) using scipy.integrate.quad to evaluate the integral in equation (2.12.1). Same as \(m_p(x)\).
2. The values are interpolated using scipy.interpolate.interp1d. If a value outside the grid is requested, I directly use equations (2.12.1) and (2.12.2) to compute the values.
3. Instead of optimizing for \(x_e\) such that \(m_p(x_e) = 1/2\), I just evalute the interpolation \(x = x(m_p)\)
4. All these interpolations and numerical integrations deal with numerical divergences at small \(x\), unfortunately large values of \(\gamma\) make this more challenging, as the density becomes more centrally concentrated. I use logarithmic grids and careful handling of small values to mitigate this, however numerical noise remains for large \(\gamma\).

Problem 2.13

Density profile

Define

\[ p = K\rho^2 \quad K = \frac{2\pi \hbar^2a}{m^3}. \]

In hydrostatic equilibrium

\[ \frac{dp}{dr} = 2K\rho\frac{d\rho}{dr} = -\frac{GM(r)\rho(r)}{r^2} = -\rho \frac{d\Phi}{dr}. \]

From here

\[ \Phi(r) = -2K\rho(r) + \text{constant}. \]

Now, applying Poisson's equation

\[ \nabla^2\Phi = -2K\nabla^2\rho = 4\pi G \rho, \quad \nabla^2\rho +k^2 \rho = 0, \quad k^2 = \frac{2\pi G}{K}. \]

(Density profile is a solution to the Helmholtz equation!) The general solution is

\[ \rho(r) = \frac{A\sin(kr)}{r} + \frac{B\cos(kr)}{r}. \]

To ensure regular solutions at \(r=0\), we set \(B=0\). Setting \(\rho_0 = \lim_{r\to 0}\rho(r) = Ak\), we have

\[ \rho(r) = \rho_0 \mathrm{sinc}(kr), \quad k = \sqrt{\frac{Gm^3}{\hbar^2 a}}. \]

Boundary radius

The boundary radius \(R\) is defined as the radius where \(\rho(R) = 0\),

\[ \sin(kR) = 0 \implies R = \frac{\pi}{k} = \pi\sqrt{\frac{\hbar^2 a}{G m^3}}. \]

Circular velocity

The circular velocity is given by

\[ v_c^2 = \frac{GM(<r)}{r} = \frac{4\pi G\rho_c}{k^2}\left(\frac{\sin(kr)}{kr} - \cos(kr)\right), \quad r \le \pi/k. \]

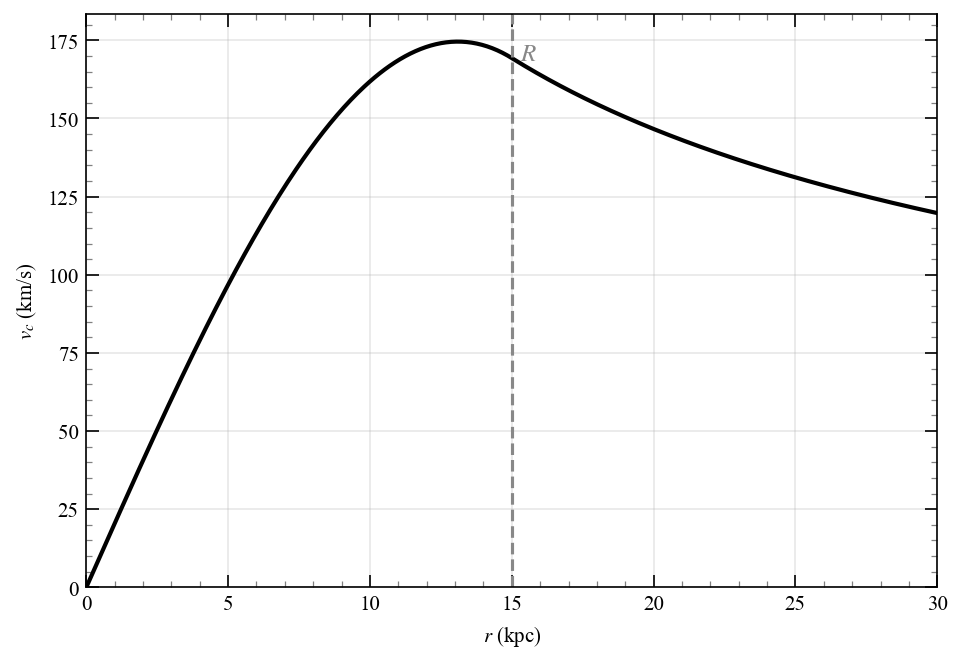

Figure 2.13: Circular velocity profile of the Fermi gas model with \(R=15\, \mathrm{kpc}\) and \(M=10^{11}\, \mathrm{M}_\odot\).

Script to generate figure:

from galactic_dynamics_bovy.chapter02.fermi_gas_vcirc import plot_fermi_gas_vcirc
plot_fermi_gas_vcirc()

Note that for \(r > R\) the circular velocity is simply \(v_c^2 = GM/r\).
