Multipole Expansion

For axially symmetric mass distributions, the density can be written as

\[ \rho(r, \Omega) = \rho(R, z) = \rho(r\sin\theta, r\cos\theta), \]

that is, it does not depend on the azimuthal angle \(\phi\). For this case Eq. (2.94) of (Binney & Tremaine, 2008)¹ reduces to

\[ \rho_{lm}(a) = 2\pi \delta_{m0} \sqrt{\frac{2l + 1}{4\pi}} \int_{-1}^{1} du P_l(u) \rho(a\sqrt{1 - u^2}, au), \]

which can numerically pre-computed for a given mass model. In the example below I use the Satoh model

\[ \rho(R, z) = \frac{ab^2M}{4\pi S^3(z^2 + b^2)}\left[ \frac{1}{\sqrt{z^2 + b^2}} + \frac{3}{a}\left(1 - \frac{R^2 + z^2}{S^2}\right)\right] \]

The potential can be computed using the multipole expansion as

\[ \Phi(r \sin\theta, r\cos\theta) = -G\sum_{l=0}^{l_\mathrm{max}} P_l(\cos\theta)\sqrt{\frac{4\pi}{2l + 1}} \left[ \frac{1}{r^{l+1}} \int_0^r da\, a^{l+2} \rho_{l0}(a) + r^l \int_r^\infty da\, a^{1 - l} \rho_{l0}(a) \right], \]

In code this looks like this

>>> from galactic_dynamics_bt.chapter02.multipole_expansion import SatohModel, SatohModelParams
>>> model = SatohModel(SatohModelParams(q=0.6))
>>> expansion = MultipoleExpansion(model, 6)

This will create a multipole expansion up to \(l_\mathrm{max} = 6\) for the Satoh model with flattening parameter \(q = b/a = 0.6\). You can then evaluate the potential at any point \((R, z)\) using

>>> R, z = 1.0, 0.5
>>> potential = expansion.potential(R, z)

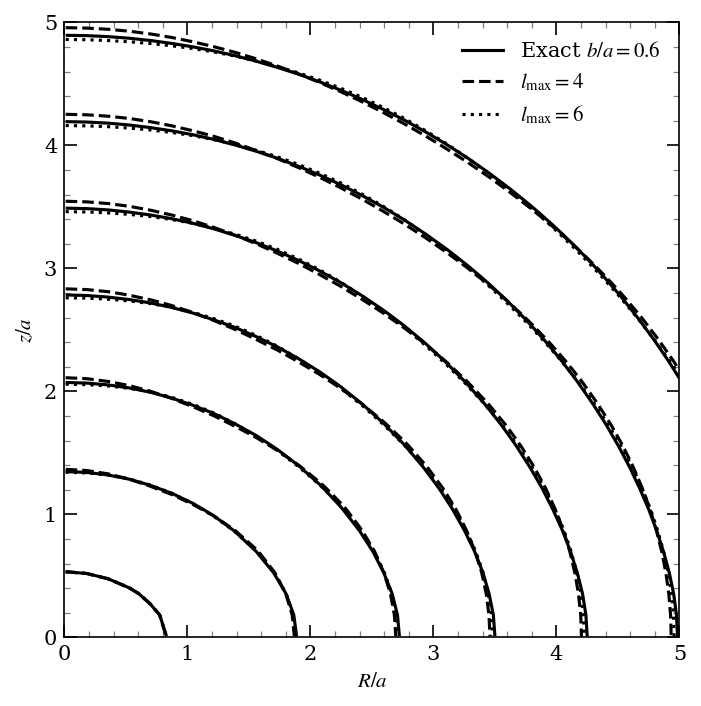

Figure: Multipole Expansion of Satoh Model, \(b/a=0.6\). I included a flatter potential than the one in (Binney & Tremaine, 2008)¹ to better illustrate the convergence of the expansion with \(l_\mathrm{max}\). The solid black line shows the exact potential, other lines show the multipole expansion with different \(l_\mathrm{max}\) values. \(l_\mathrm{max} = 10\) is practically indistinguishable from the exact potential.

References

---

1. Binney, J., & Tremaine, S. (2008). Galactic dynamics. Princeton University Press. ↩↩
