Surfaces of Section

Integrating orbits with Symplectic Integrators

For the potential

\[ \Phi(R, z) = \frac{1}{2}v_0^2 \ln\left(R^2 + \frac{z^2}{q^2}\right), \]

we can numerically integrate orbits using a symplectic integrator; given the hamiltonian nature of the sytem, this represents the more accurate way to integrate orbits over long timescales (Candy & Rozmus, 1991)1.

>>> from galactic_dynamics_bt.chapter03.logarithmic_potential import (
... integrate_orbit,
... LogarithmicPotential,
... LogarithmicPotentialParams,
... )
>>> model = LogarithmicPotential(LogarithmicPotentialParams(q=0.9, v0=1.0), Lz=0.2)
>>> t, R, z, pR, pz = integrate_orbit(model, E=-0.8, R0=0.35, pR0=0.1, t_max=20.0, dt=0.01)

This snippet will generate an initial condition with energy \(E = -0.8\), angular momentum \(L_z = 0.2\), and integrate the orbit for 20 time units with a timestep of \(\Delta t= 0.01\). Behind the scenes, the integrator is using a second-order scheme to perform the numerical evolution of the orbits.

The top two panels of Figure 1 show the resulting orbit in the meridional plane \((R, z)\) using this strategy for \(q = 0.9\) (left) and \(q = 0.6\) (right).

For the same initial conditions on the top left panel, I also calculate the total angular momentum

\[ \begin{align} L^2 &= \mathbf{L} \cdot \mathbf{L} \\ &= (z p_R - R p_z)^2 + (R^2 + z^2)\frac{L_z^2}{R^2}, \end{align} \]

which is displayed in Figure 2, in two different windows of time. As expected, the total angular momentum is not exactly conserved due to the flattening of the potential, but it oscillates around a mean value.

Orbits in a flatten logarithmic potential

Figure: 1: Top panels: Orbits in the meridional plane \((R, z)\) for a flatten logarithmic potential with \(q = 0.9\) (left) and \(q = 0.6\) (right). Bottom panels: Corresponding Poincaré surfaces of section. The solid line indicates the zero-velocity curve, while the dashed line shows the orbit if the total angular momentum were exactly conserved.

Poincaré Surface of Section

To calculate the Poincaré surface of section, I record the coordinates along the orbit and look for the points where it crosses the plane \(z = 0\): \(z(t) < 0 < z(t + \Delta t)\) and \(p_z(t) > 0\). The points are then subsequently integrated by changing the coordinates frp \((R(t), z(t), p_R(t), p_z(t))\) to \((R(z), t(z), p_R(z), p_z(z))\) (Cvitanović et al., 2020)2,

\[ \begin{align} \frac{dt}{dz} &= \frac{1}{dz/dt} \\ \frac{dR}{dz} &= \frac{dR/dt}{dz/dt} \\ \frac{dp_R}{dz} &= \frac{dp_R/dt}{dz/dt} \\ \frac{dp_z}{dz} &= \frac{dp_z/dt}{dz/dt}. \end{align} \]

These equations are then integrated to \(z = 0\) using a simple Runge-Kutta scheme. The resulting surface of section is shown in the bottom panels of Figure 1 for \(q = 0.9\) (left) and \(q = 0.6\) (right) (dots).

To each surface of section I also add:

  1. The zero-velocity curve (solid line), which is obtained by setting \(p_z = 0\) and solving for \(p_R(R)\) given the energy constraint.
  2. The orbit if the total angular momentum were exactly conserved (dashed line). This is obtained by solving for \(p_R(R)\) as above, but swapping \(L_z\) with \(L\).

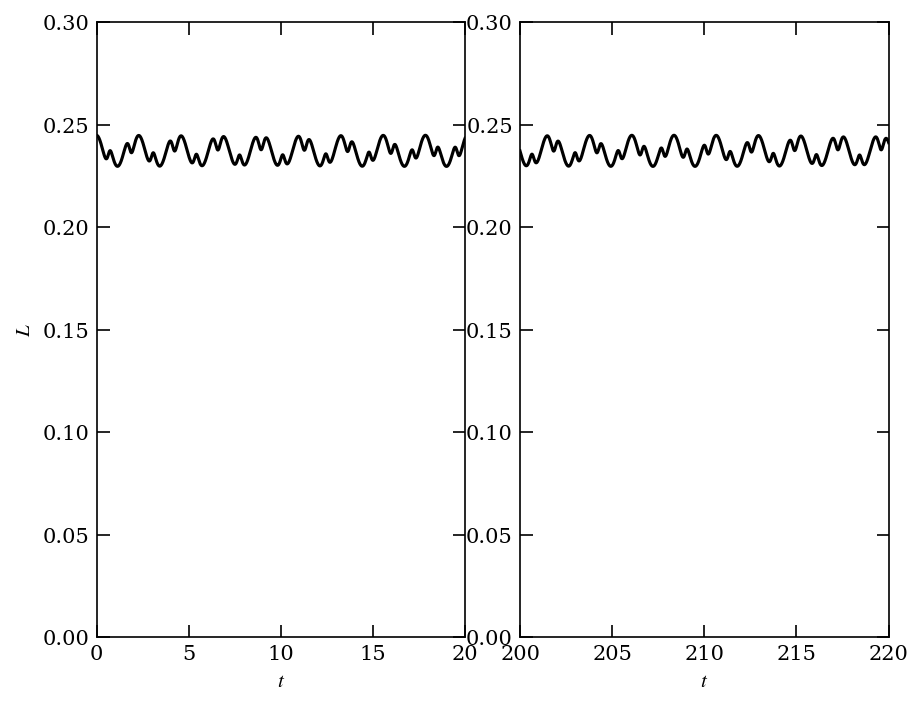

Total angular momentum

Figure: 2: Total angular momentum for the orbit shown in the top left panel of Figure 1, calculated in two different time windows.

References

  1. Candy, J., & Rozmus, W. (1991). [A Symplectic Integration Algorithm for Separable Hamiltonian Functions]{.nocase}. Journal of Computational Physics, 92(1), 230--256. https://doi.org/10.1016/0021-9991(91)90299-Z ↩

  2. Cvitanović, P., Artuso, R., Mainieri, R., Tanner, G., & Vattay, G. (2020). Chaos: Classical and quantum. ChaosBook.org. https://ChaosBook.org ↩
